Your profile. The right machine.
Explore shutter, bottom rail and U-channel machines. Compare models, view finished profiles and find the specifications for your next production line.

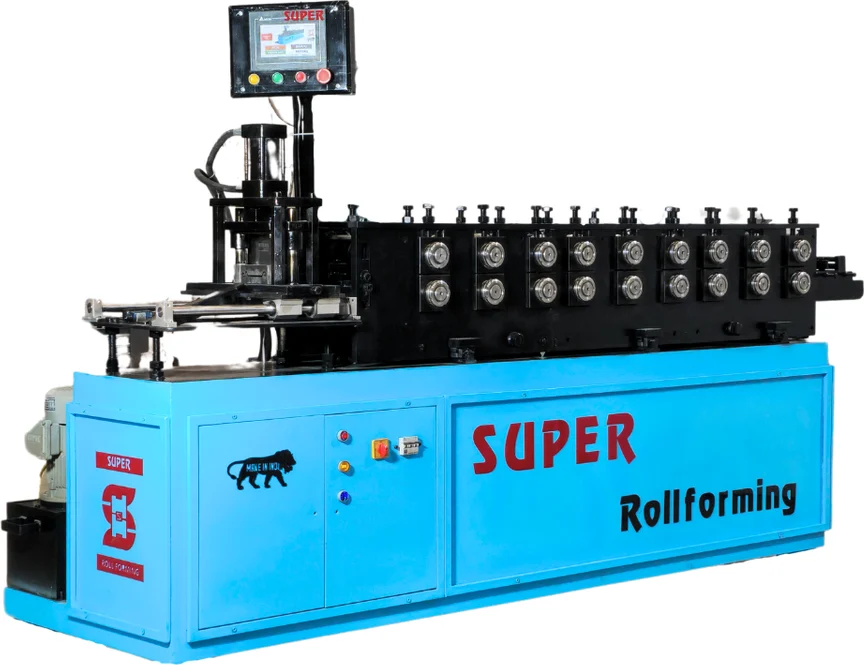

Shutter machines
Automatic
PLC control and automatic cut-to-length operation for a compact shutter strip production line.
| Material thickness | 0.55–1.2 mm |
|---|---|
| Material width | 114 mm |
| Forming stations | 9 |
| Main motor | 3.7 kW / 5 HP |
| Cutting motor | 1.6 kW / 2 HP |
| Cutting system | PLC automatic cutter |
| Electrical supply | 380 V · 3 phase · 50 Hz |
Rated output depends on material, profile and operating conditions. Final specifications are agreed with your quotation.

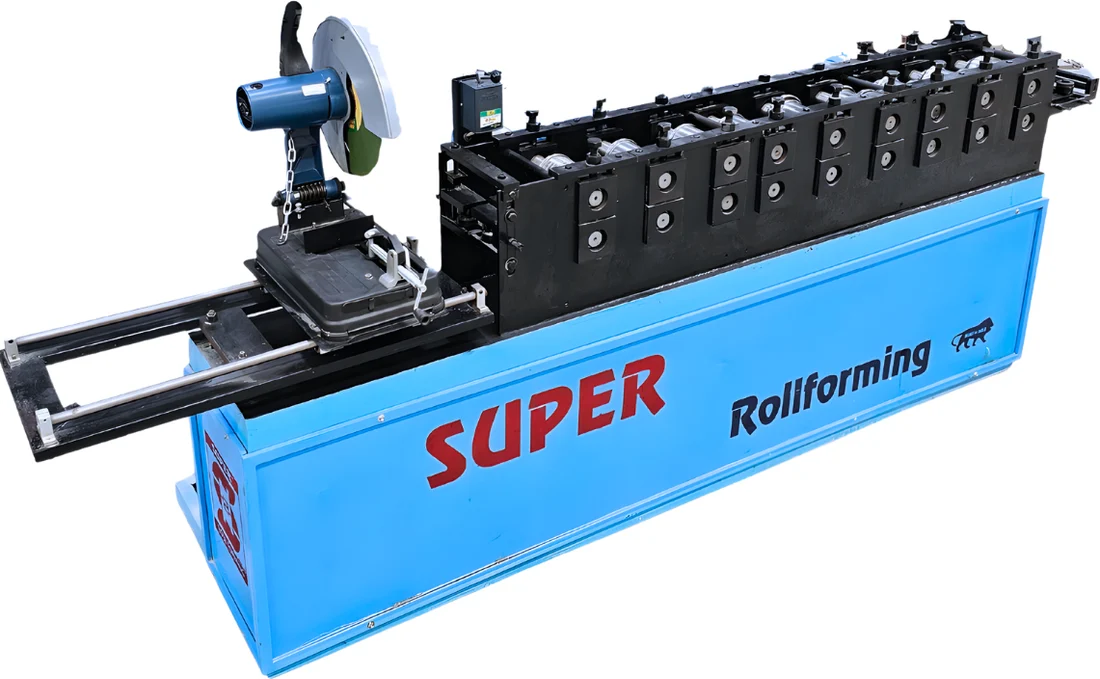

Enquire about AutomaticBottom rail machines

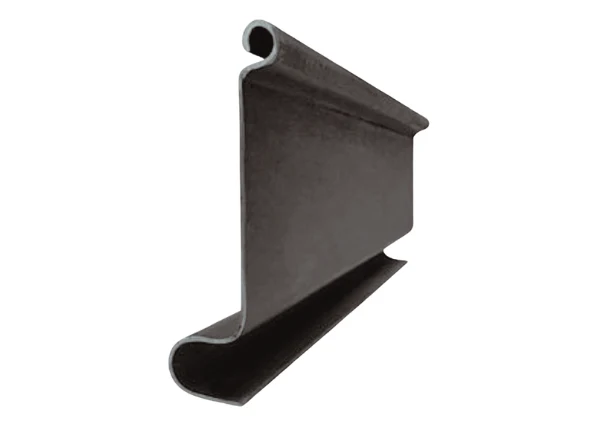

Super Bottom
Form a strong finishing rail for rolling shutters with dedicated Super Bottom tooling.
| Material thickness | 1.2–3 mm |
|---|---|
| Sheet width | 190–192 mm |
| Rated production | 5 tonnes/day |
| Profile | Super Bottom |
| Electrical supply | 380 V · 3 phase · 50 Hz |
Rated output depends on material, profile and operating conditions. Final specifications are agreed with your quotation.

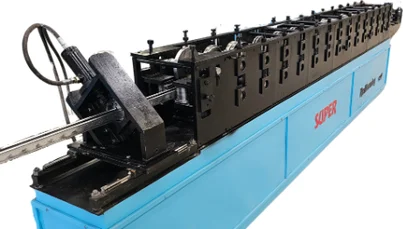

Enquire about Super BottomU-channel machines

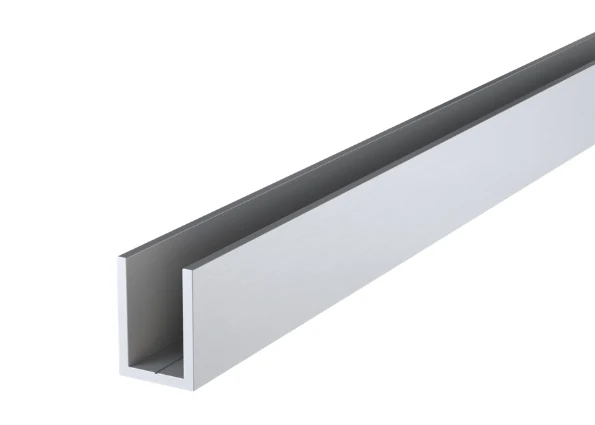

U-Channel
Produce shutter side guides with an integrated forming line, chop-saw cutting, run-out table and heavy decoiler.
| Motor power | 5.5 kW |
|---|---|
| Cutting system | Chop saw |
| Material handling | Heavy decoiler |
| Output handling | Run-out table |
| Electrical supply | 380 V · 3 phase · 50 Hz |
| Channel dimensions | Configured to your approved drawing |
Rated output depends on material, profile and operating conditions. Final specifications are agreed with your quotation.
Enquire about U-Channel
